Staying compliant with federal safety regulations is about more than just avoiding fines. Adherence to these guidelines plays an important part in protecting your drivers, your vehicles, and everyone else on the road. One of the simplest, most effective ways to improve visibility is with reflective tape. For box trucks, the Federal Motor Carrier Safety Administration (FMCSA) has clear guidelines on what’s required to stay compliant. Here’s everything you need to know about properly outfitting the vehicles in your fleet according to the experts at Briargate Supply, your source for FMCSA compliant tape for box trucks.
Why Reflective Tape Matters
Reflective conspicuity tape dramatically improves visibility in low-light and nighttime conditions, reducing the risk of side and rear collisions. Box trucks, especially those used for deliveries or contracting, often operate at dawn, dusk, or in busy urban areas, which are prime conditions for visibility issues. Meeting FMCSA standards ensures that your vehicle can be seen from a safe distance, helping to reduce the risk of an accident.
FMCSA Requirements for Box Trucks
The FMCSA’s conspicuity regulations apply to most commercial vehicles with a box-style cargo area. These requirements specify both the type of tape you must use and where it must be installed.
Approved Tape Type
FMCSA requires:
- Red-and-white alternating reflective tape that meets DOT-C2 certification.
- Tape must be visible from all necessary angles and maintain reflectivity over time.
- High-intensity or prismatic grades are allowed, but tape must meet the minimum DOT standard.
Placement Requirements
FMCSA guidelines outline tape placement on both the rear and sides of the truck.

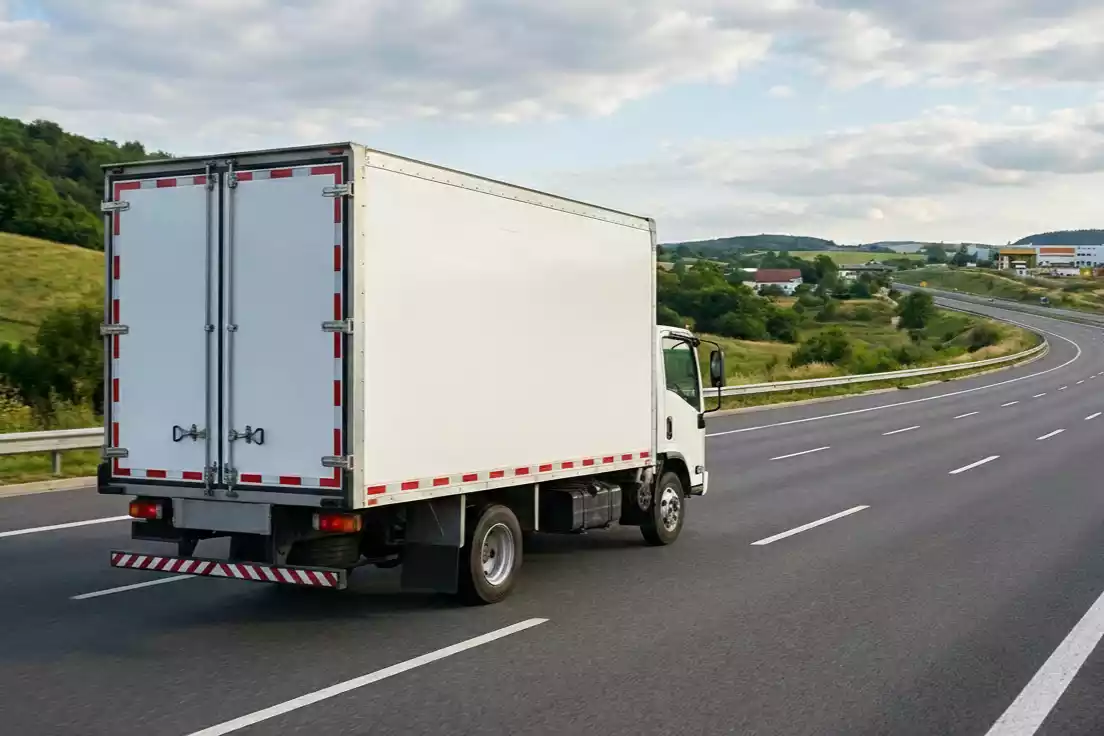

Rear of the Box Truck
- Red/white reflective tape must outline the full width of the rear of the box.
- Vertical strips (at least 12 inches) must appear on the lower corners.
- The lower horizontal bar should be at least 100 mm above the ground.
Sides of the Box Truck
- Red/white reflective tape should cover at least half of the vehicle’s side length.
- Tape must be placed as horizontally as possible.
- Segments should be evenly spaced and installed between 15 and 60 inches off the ground.
Common Compliance Mistakes
Even well‑intentioned vehicle owners can fall out of compliance. The most frequent issues include:
- Using tape that is not DOT‑approved.
- Missing sections along the sides or rear.
- Damaged or faded tape that no longer reflects properly.
- Incorrect heights or uneven spacing.
These issues may lead to fines, or worse, a dangerous lack of visibility. Be sure to use only DOT-approved tape for box trucks and apply tape in accordance with federal guidelines. Last, always replace tape that is worn or has lost its reflective quality.
How to Ensure Your Truck Stays Compliant
Staying compliant is easier when you have the right materials and install them correctly. Regular inspections can help catch fading, peeling, or damaged tape early. When replacing old tape, clean the surface thoroughly to ensure proper adhesion and longevity.
Briargate Supply can help you stay compliant with:
- DOT‑approved reflective tape rolls
- Full reflective tape kits for box trucks
- Installation guidance and support
Stay Compliant with Briargate Supply
Reflective tape for box trucks might seem like a small detail, but it plays a major role in FMCSA compliance and roadway safety. Whether you’re operating a single truck or managing a fleet, ensuring proper tape placement and quality can make a significant difference.
When you’re ready to upgrade or replace your reflective tape, Briargate Supply has everything you need to stay safe, visible, and fully compliant. Contact us today to find the right product for your needs.
